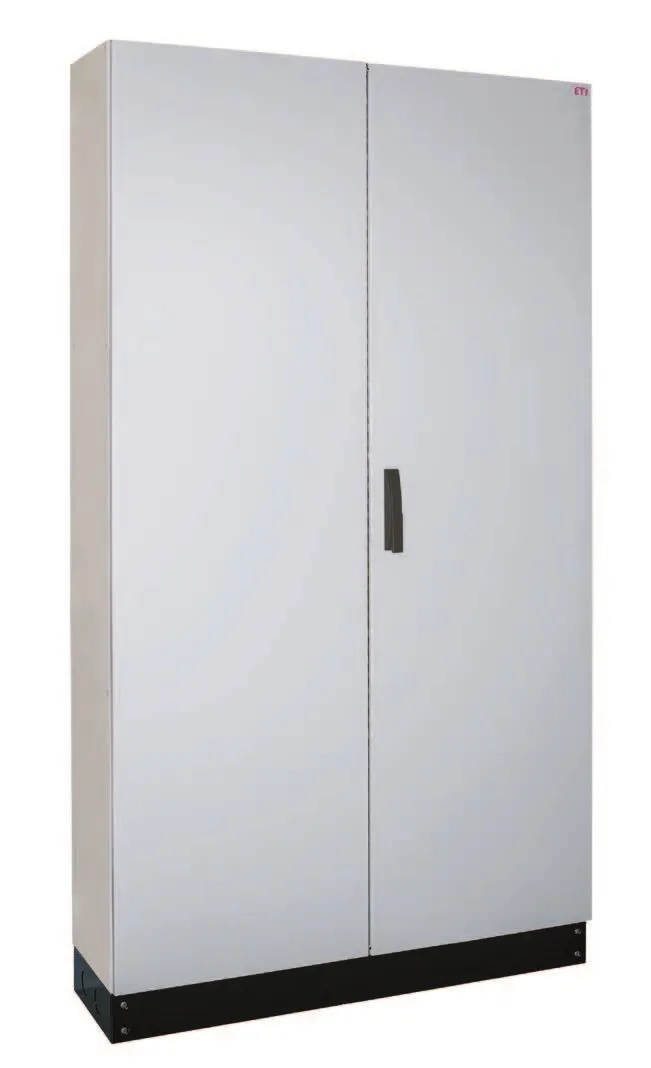

Ormar HXS300 4-12 PH1 001325104

Specifikacije

Šifra proizvoda:: 001325104
Opis:: HXS300 4-12 PH1
Ime razreda:: Ormar
Klasa zaštite:: I
IP zaštita:: IP55
mehanička otpornost:: IK10
Visina (mm):: 1850 (1950 with plinth)
Širina (mm):: 1050
Dubina (mm):: 300
Primjena:: Unutarnja primjena
Boja:: RAL 7035

Dokumenti

Logistički podaci

Proizvod

Etikod EAN
Carinska tarifa: 85381000

Osnovno pakiranje

Količina: 1
EAN: 5902047605260
Težina: 92 kg

Transportno pakiranje

EAN

Softver i upravljački programi

Softver se nudi takav kakav jest bez ikakvih jamstava ili garancija. Autor nije dužan pružati podršku, usluge, ispravke ili nadogradnje besplatnih softverskih programa ili upravljačkih programa.

Oznake

001325104 Flush mounted enclosure Enclosure, HXS300 4-12 PH1 ETIBOX1 SOLID GSX METAL ENCLOSURES STANDING ENCLOSURES Series HXS HXS300 PH1 Enclosures, distribution boards, equipment ETIBOX Enclosure system and accessories SOLID GSX Standing IP55 (65) HXS type HXS300 4-12 PH1 Function Enclosure Type Standing enclosure Rows 12 Mounting type Floor standing Type of door Full, metal door For use with SOLID GSX system Size 4-12 Height 1850 (1950 with plinth)mm Width 1050mm Depth 300mm Frame size 300 Product group ETIBOX Product subgroup SOLID GSX Rated AC voltage 690 V ACV IP rating IP55 Dimensions 1050x1850 (1950 with plinth)x300 Mounting Floor standing Network system 1 phase and 3 phase system Color RAL 7035 Catalogue Group SOLID GSX Enclosures Isolation class I Ambient temperature -5?C ... +40?C°C Standards IEC EN 62208, IEC EN 60529, IEC EN 62262, IEC EN 61439-1 Application Indoor use Key locks 3-points lock system without lock insert Mechanical resistance IK10 Protection Class I Working Temperature -5°C ... +40°C°C Surface finish Powder coated steel Directives RoHS Enclosure HXS300 Indoor use IP55 IK10 1850 (1950 with plinth)mm 1050mm 300mm
