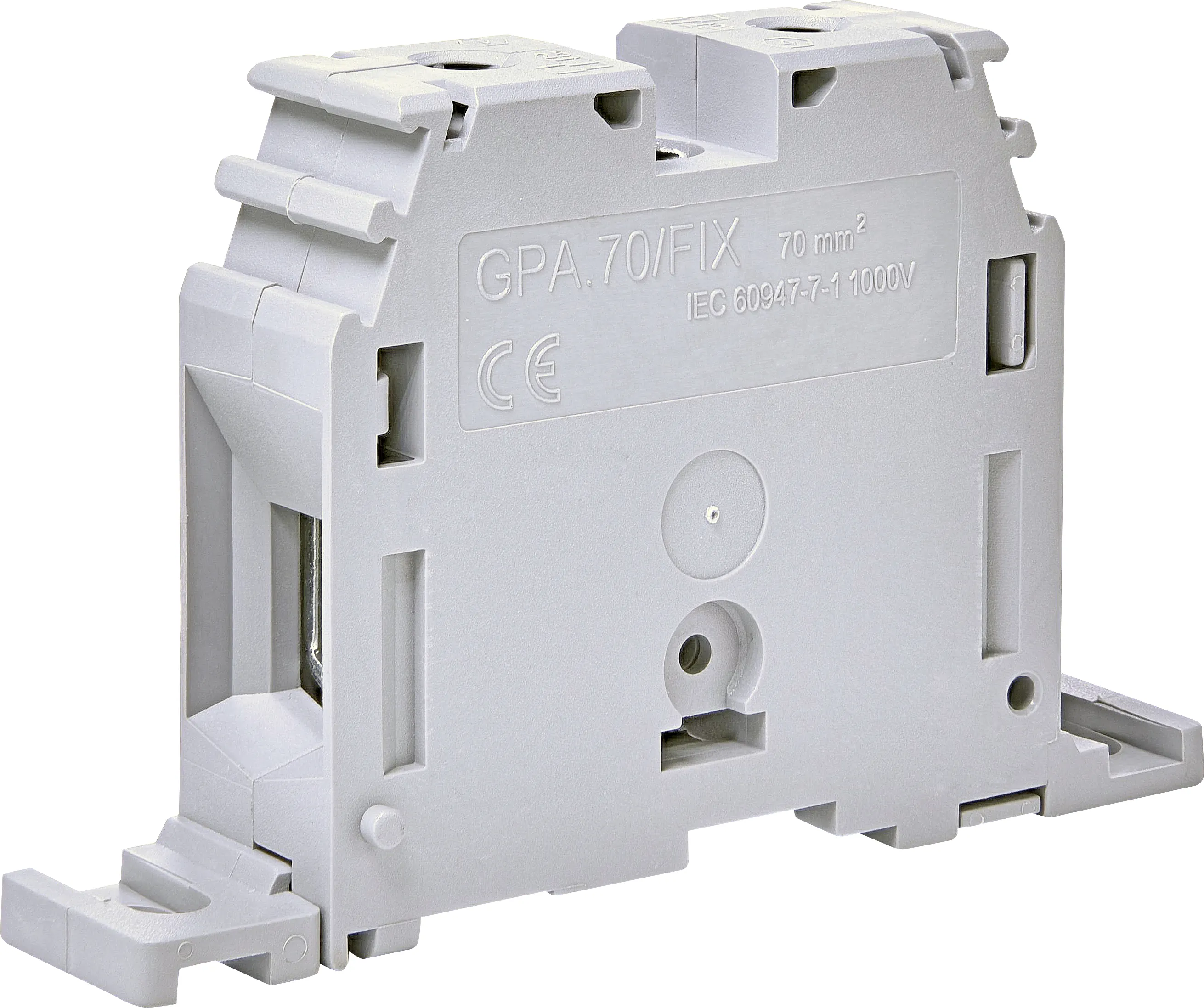

Redna stezaljka ESC-GPA.70/FIX 003903211
Specifikacije
- Šifra proizvoda:
- 003903211
- Opis:
- ESC-GPA.70/FIX
- Ime razreda:
- Redna stezaljka
- Nivo:
- Jedan
- Tip:
- Priključni blokovi tipa ES vijaka
- Nazivni impulsni napon Uimp (kV):
- 12kV
- Boja:
- Siva
- Nazivni poprečni presjek:
- 70mm²
- Maks. struja sa nazivnim poprečnim presjekom (mm2):
- 192mm²
- Unakrsna veza:
- NO
- Potreban je krajnji dio:
- NO
Dokumenti
Logistički podaci
Proizvod
- Etikod EAN
- 3838895859710
- Eticode težina
- 0.114 kg
- Carinska tarifa
- 85369010
- logis_net_width
- 25 mm
- logis_net_height
- 102 mm
- logis_net_depth
- 65 mm
Transportno pakiranje
- Količina
- 25
- EAN
- 3838895830597
- Težina
- 2.975 kg
- Broj paleta
- 3900
ETIM Clasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 10…95
- Connectable conductor cross section fine-strand with cable end sleeve
- 10…70
- Connectable conductor cross section solid-core
- 10…95
- Connectable conductor cross section multi-wired
- 10…95
- Rated current In
- 192
- Rated voltage
- 1000
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- Direct mounting
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Ne
- Colour
- Grey
- Internally connected stages
- Ne
