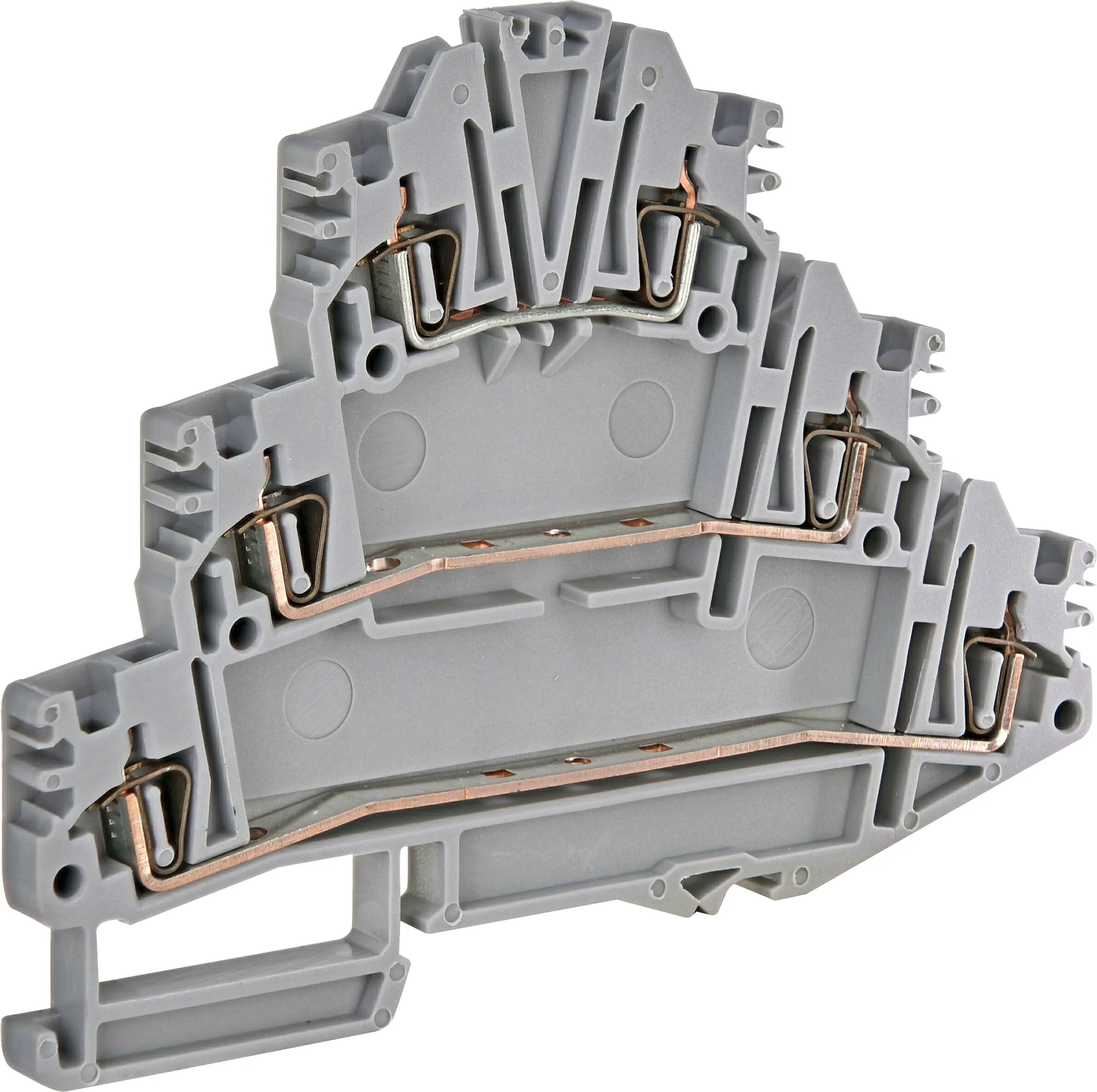

Redna stezaljka ESP3-HLD.2 003903186
Specifikacije
- Šifra proizvoda:
- 003903186
- Opis:
- ESP3-HLD.2
- Ime razreda:
- Redna stezaljka
- Nivo:
- Trostruka
- Tip:
- ES opružne stezaljke
- Nazivni impulsni napon Uimp (kV):
- 8kV
- Boja:
- Siva
- Nazivni poprečni presjek:
- 2.5mm²
- Maks. struja sa nazivnim poprečnim presjekom (mm2):
- 24mm²
- Priključci za vodič (mm2):
- 2mm²-25mm²
- Unakrsna veza:
- YES
- Potreban je krajnji dio:
- YES
Dokumenti
Logistički podaci
Proizvod
- Etikod EAN
- 3838895862598
- Eticode težina
- 19.2 g
- Carinska tarifa
- 85369010
- logis_net_width
- 5 mm
- logis_net_height
- 95 mm
- logis_net_depth
- 74 mm
Transportno pakiranje
- Količina
- 50
- EAN
- 3838895789802
- Težina
- 1.075 kg
- Broj paleta
- 17600
ETIM Clasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…2.5
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…1.5
- Connectable conductor cross section solid-core
- 0.2…2.5
- Connectable conductor cross section multi-wired
- 0.2…2.5
- Rated current In
- 24
- Rated voltage
- 500
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 3
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40…100
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Grey
- Internally connected stages
- Ne
