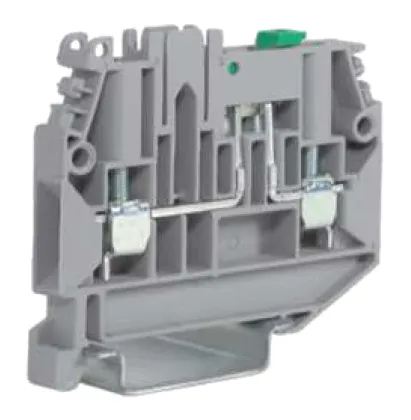

Modul za odvajanje ESC-CBS.2 003903064
Specifikacije
- Šifra proizvoda:
- 003903064
- Opis:
- ESC-CBS.2
- Ime razreda:
- Modul za odvajanje
- Tip:
- Priključni blokovi tipa ES vijaka
- Nazivni impulsni napon Uimp (kV):
- 6kV
- Boja:
- Siva
- Nazivni poprečni presjek:
- 2mm²
- Maks. struja sa nazivnim poprečnim presjekom (mm2):
- 20mm²
- Priključci za vodič (mm2):
- 2mm²-4mm²
- Unakrsna veza:
- YES
- Potreban je krajnji dio:
- YES
Dokumenti
Logistički podaci
Proizvod
- Etikod EAN
- 3838895861102
- Eticode težina
- 1 g
- Carinska tarifa
- 85369010
- logis_net_width
- 5 mm
- logis_net_height
- 58 mm
- logis_net_depth
- 51 mm
Transportno pakiranje
- Količina
- 100
- EAN
- 3838895788607
- Težina
- 1.087 kg
- Broj paleta
- 45000
ETIM Clasifikacija
- Klasifikacija
- EC000902
- Ime razreda
- (Knife) disconnect terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…4
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…2
- Connectable conductor cross section solid-core
- 0.2…4
- Connectable conductor cross section multi-wired
- 0.2…4
- Rated current In
- 22
- Rated voltage
- 630
- Type of electrical connection 1
- Screw connection
- Type of electrical connection 2
- Screw connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Internally connected stages
- Ne
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Inflammability class of insulation material according to with UL94
- V0
- Operating temperature
- -40…100
- Closing plate required
- Da
- Colour
- Grey
- Type of slitting
- Swivelling
- Type of cross disconnection
- Swivelling
- With integrated test socket
- Ne
