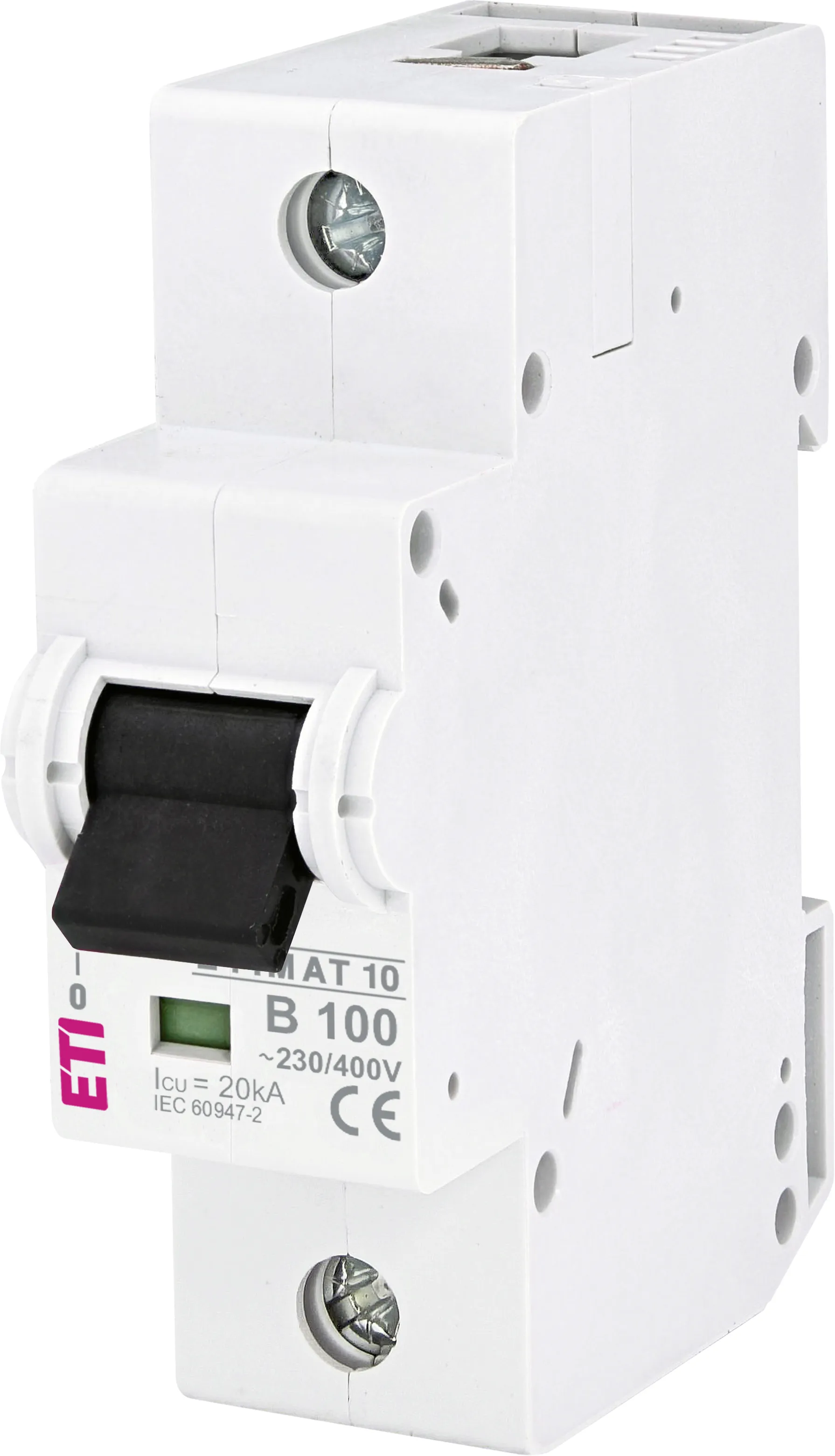

Instalacijski prekidač ETIMAT 10 1p B100 002121732
Specifikacije
- Šifra proizvoda:
- 002121732
- Opis:
- ETIMAT 10 1p B100
- Ime razreda:
- Instalacijski prekidač
- Nazivna struja (A):
- 100A
- Karakteristika okidanja:
- B
- Broj polova:
- 1
- Nazivna prekidna moć (kA):
- 20kA
- Tip napona:
- AC
- Nazivna frekvencija (Hz):
- 50Hz/60Hz
- Nazivni impulsni napon Uimp (kV):
- 4kV
- Nazivni poprečni presjek:
- 25mm²
- Standardi:
- IEC/EN 60898-1,IEC 60947-2
- Funkcija:
- Instalacijski prekidači
Dokumenti
Logistički podaci
Proizvod
- Etikod EAN
- 3838895811152
- Eticode težina
- 250 g
- Carinska tarifa
- 85362090
- logis_net_width
- 27 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 77 mm
Osnovno pakiranje
- Količina
- 2
- EAN
- 3838895811169
- Težina
- 0.52 kg
Transportno pakiranje
- Količina
- 72
- EAN
- 3838895811176
- Težina
- 18.96 kg
- Broj paleta
- 3744
ETIM Clasifikacija
- Klasifikacija
- EC000042
- Ime razreda
- Miniature circuit breaker (MCB)
- Release characteristic
- B
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 100A
- Rated voltage
- 230/400V
- Rated insulation voltage Ui
- 440V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 20kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 20kA
- Voltage type
- Other
- Frequency
- 50…60Hz
- Current limiting class
- 3
- Over voltage category
- 3
- Pollution degree
- 3
- Additional equipment possible
- Da
- Width in number of modular spacings
- 1,5
- Built-in depth
- 75mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 2.5…50mm²
- Connectable conductor cross section solid-core
- 2.5…50mm²
