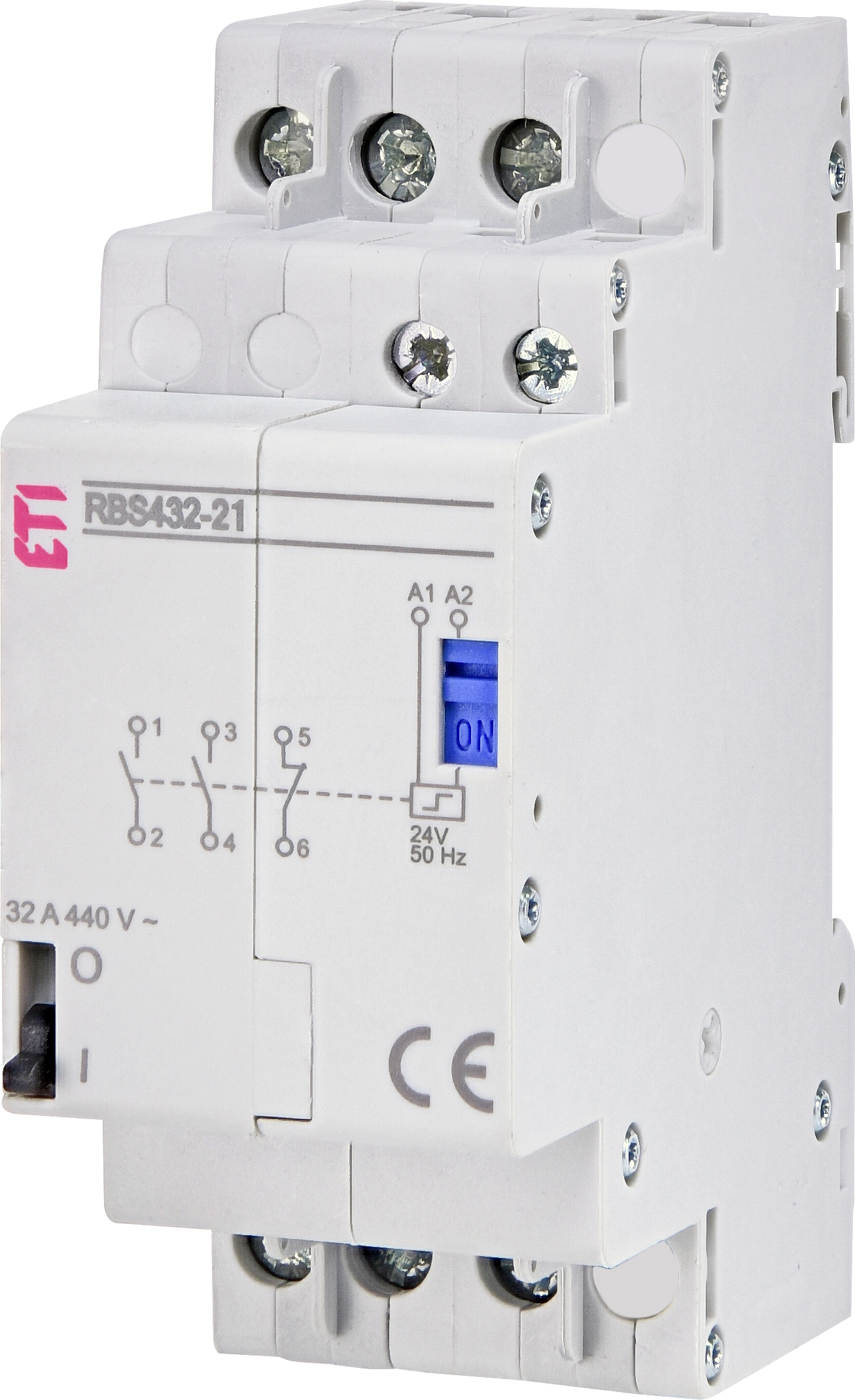

Sklopka RBS432-21-24V AC 002464147

Specifikacije Dodaj u moje proizvode Add to comparison Remove from comparison

Šifra proizvoda:

002464147

Opis:

RBS432-21-24V AC

Ime razreda:

Sklopka

Max. number of impulses per minute:

7,5

Storage temperature (°C):

-30...+80

Max. back-up fuse for short circuit protection:

32 A gL

Min. impulse duration between two impulses (ms):

150

Max. impulse duration at Uc (ms):

1 hr

Min. impulse duration at Uc (ms):

50

Distance between contacts and coil (mm):

>6

Min. distance of open contacts (mm):

>3

Max. vibration resistance (g):

3

Max. shock resistance (g):

15

Resistance to humidity:

95 % RH @ +55 °C

Funkcija:

Bistabilni sklopnici RBS

Napon napajanja (V):

24

I (AC1 u A):

32

Tip napona:

AC

broj NO kontakta:

2

Broj NC kontakata:

1

Nazivna frekvencija (Hz):

50/60

Veličina:

3p, 2-module

Nazivna struja (A):

32

Broj polova:

3

Terminal screw:

M4 (main circuit)/M3 (control circuit)

Nazivni poprečni presjek:

1...10

Tightening torque (Nm):

1,2

IP zaštita:

IP20

Temperatura okoline (°C):

-25...+55

Tip montaže:

TH 35

Nazivni radni napon (V AC):

440

Nazivni izolacijski napon (V):

440

Termička struja Ith (A):

32

Broj modula:

2

Širina (mm):

35

Pd (W):

9

Mechanical cycles:

100.000

Electrical cycles:

10.000

Standardi:

IEC/EN 60669-2-2
