002443005

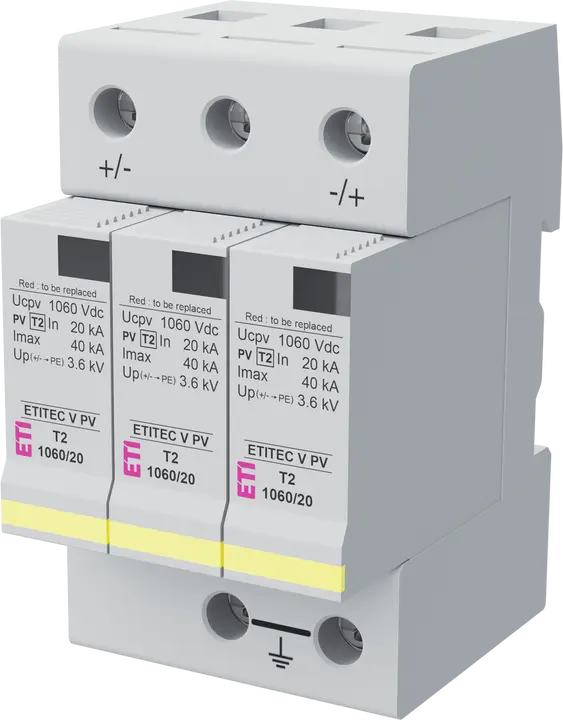

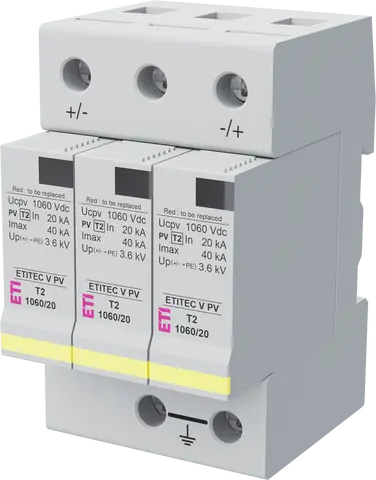

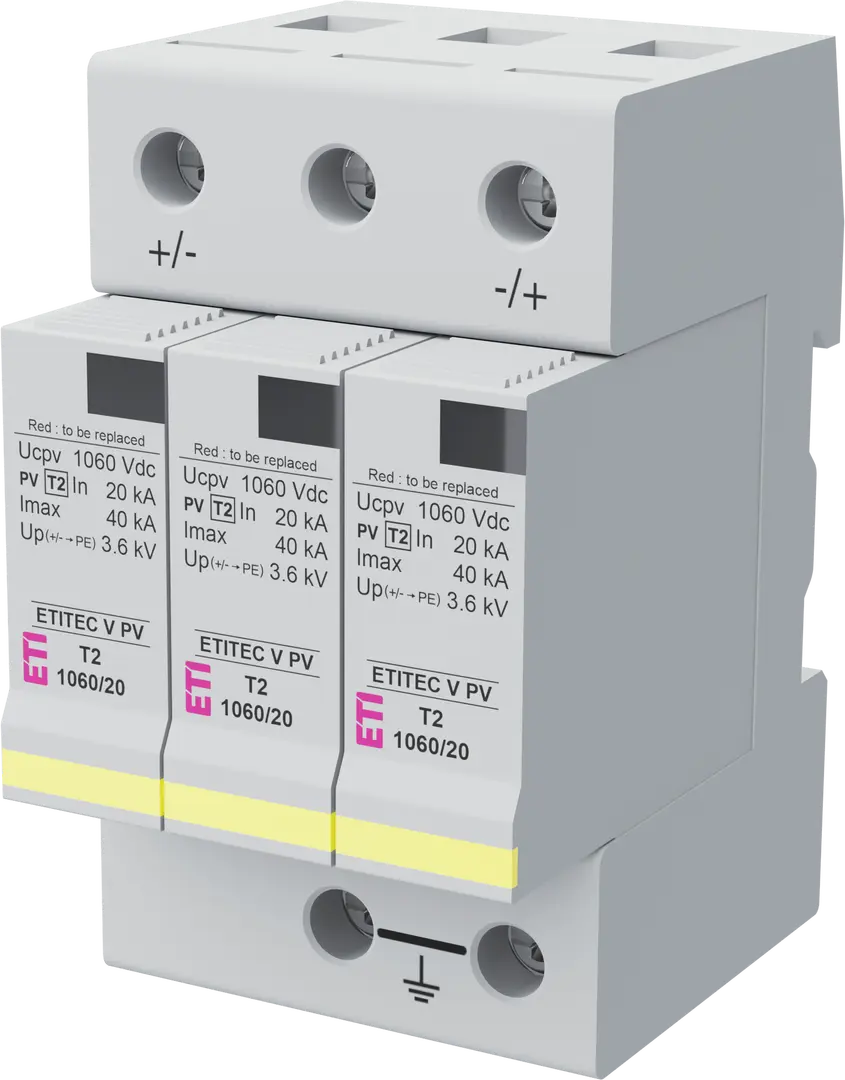

Slika ETITEC V PV T2 1060/20

ETITEC V PV T2 1060/20 Odvodnik prenapona

ETI kod:: 002443005
Funkcija:: SPD
Tip struje:: DC
Tip prenaponskog odvodnika:: T2
Maks. trajni radni napon DC Uc:: 1.060 V
In (8/20):: 20 kA
Imax(8/20):: 40 kA
Up - Zaštitna naponska razina:: 3,6 kV
Daljinska signalizacija:: ✗
Struja curenja:: ✓
Broj modula:: 3
Instalacija:: DIN
Dubina ugradnje:: 67 mm
Primjenjena tehnologija:: MOV
IP zaštita:: IP40
Grupa kataloga 1:: ETITEC PV

Katalog tehničkih podataka

Proizvod

Težina: 0,289 kg
Stock unit of measure: pcs

Osnovno pakiranje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400182227
Basic packaging weight: 0,31 kg
Basic Packaging Dimensions Height: 57 mm
Basic Packaging Dimensions Width: 70 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0,399 dm³

Transportno pakiranje

Intermediate packaging quantity: 3 pcs
EAN code for a intermediate packaging: 3838400182210
Intermediate packaging weight: 1,031 kg
Intermediate Packaging Dimensions Height: 105 mm
Intermediate Packaging Dimensions Width: 78 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838400182203
Transport packaging weight: 14,644 kg
Transport Packaging Dimensions Height: 210 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28,014 dm³
Pallet quantity: 1.440 pcs
Customs tariff: 85363030

System configuration other: ✓
Max. discharge surge current (8/20): 40 kA
Number of conductors (without earthing): 2
Degree of protection (IP): IP40
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 3 modular spacing
Nominal voltage DC: 1.000 V
Max. PV-voltage: 1.060 V
Signalling at the device: Optical
Nominal discharge surge current (8/20): 20 kA
System configuration DC: ✓

ETIM klasifikacija – verzija 9.0
