002443004

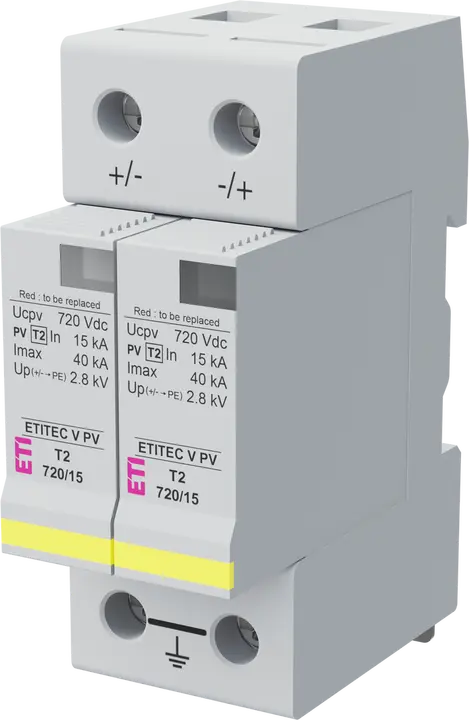

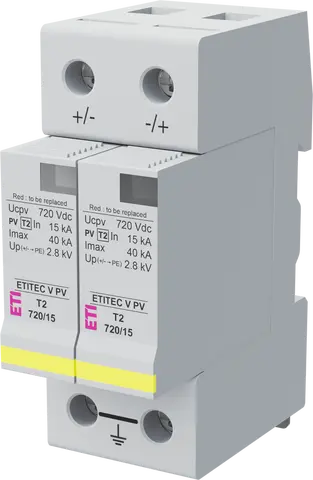

Slika ETITEC V PV T2 720/15

ETITEC V PV T2 720/15 Odvodnik prenapona

ETI kod:: 002443004
Funkcija:: SPD
Tip struje:: DC
Tip prenaponskog odvodnika:: T2
Maks. trajni radni napon DC Uc:: 600 V
In (8/20):: 15 kA
Up - Zaštitna naponska razina:: 2,8 kV
Daljinska signalizacija:: ✗
Struja curenja:: ✓
Sistem uzemljenja:: PV
Broj modula:: 2
Instalacija:: PV zaštita
Dubina ugradnje:: 60,8 mm
Primjenjena tehnologija:: MOV
IP zaštita:: IP20
Grupa kataloga 1:: ETITEC V PV

Proizvod

Težina: 0,265 kg
Stock unit of measure: pcs

Osnovno pakiranje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400160232
Basic packaging weight: 0,263 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 40 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0,28 dm³

Transportno pakiranje

Intermediate packaging quantity: 4 pcs
EAN code for a intermediate packaging: 3838400160225
Intermediate packaging weight: 1,157 kg
Intermediate Packaging Dimensions Height: 78 mm
Intermediate Packaging Dimensions Width: 105 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 48 pcs
EAN code for a transport packaging: 3838400160218
Transport packaging weight: 14,644 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28,014 dm³
Pallet quantity: 768 pcs
Customs tariff: 85363030

Max. conductor cross section flexible (fine-strand): 25 mm²
Max. discharge surge current (8/20): 40 kA
Number of conductors (without earthing): 2
Max. conductor cross section solid (solid, stranded): 25 mm²
Max. continuous voltage DC: 600 V
Degree of protection (IP): IP20
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 2 modular spacing
Nominal voltage DC: 600 V
Short-circuit breaking capacity (Isccr): 15 kA
Voltage protection level: 2,8
Max. PV-voltage: 720 V
Signalling at the device: Optical
Category type 2: ✓
Nominal discharge surge current (8/20): 15 kA
System configuration DC: ✓

ETIM klasifikacija – verzija 9.0
