Ovaj proizvod je zastario i nema izravnu zamjenu. Za pronalazak odgovarajuće zamjene obratite se našoj tehničkoj podršci.

002445222 Zastario

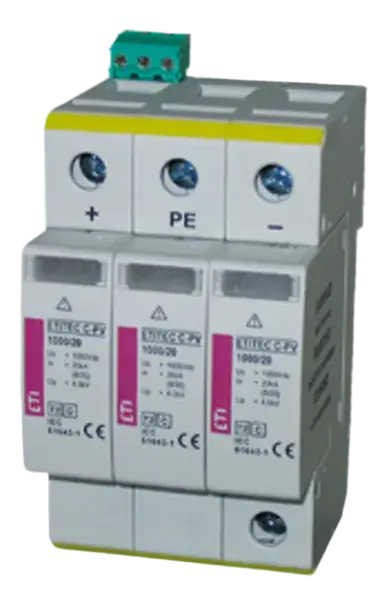

Slika * MOD.ETITEC C-PV 550/20

* MOD.ETITEC C-PV 550/20 Odvodnik prenapona

ETI kod:: 002445222
Funkcija:: SPD Modul
Za upotrebu sa:: ETITEC C PV
Tip struje:: DC
In (8/20):: 20 kA

Proizvod

Težina: 0,052 kg
Stock unit of measure: pcs

Transportno pakiranje

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895615941
Transport packaging weight: 0,62 kg
Transport packaging volume: 1,6 dm³
Pallet quantity: 13.500 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 550 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Signalling at the device: Optical
Category type 2: ✓
Nominal discharge surge current (8/20): 20 kA
System configuration DC: ✓

ETIM klasifikacija – verzija 9.0
