004661882

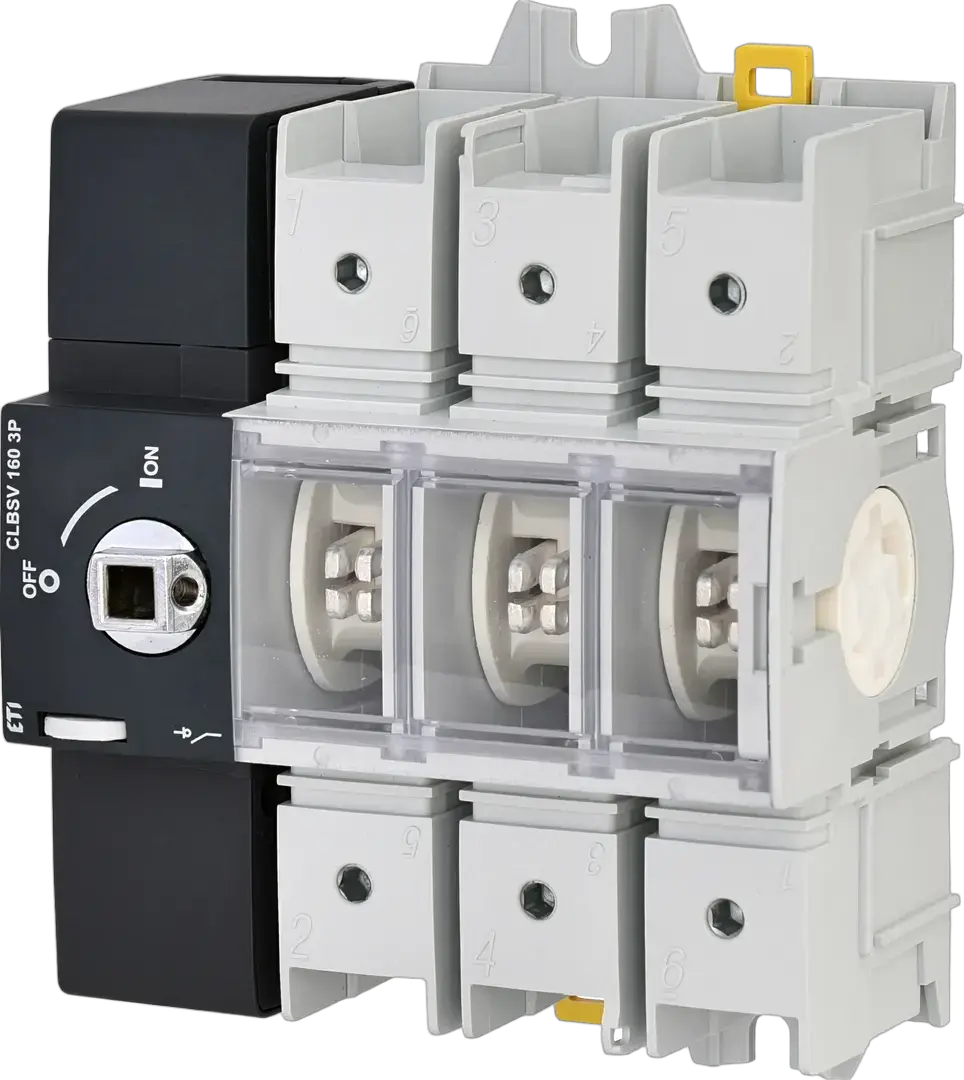

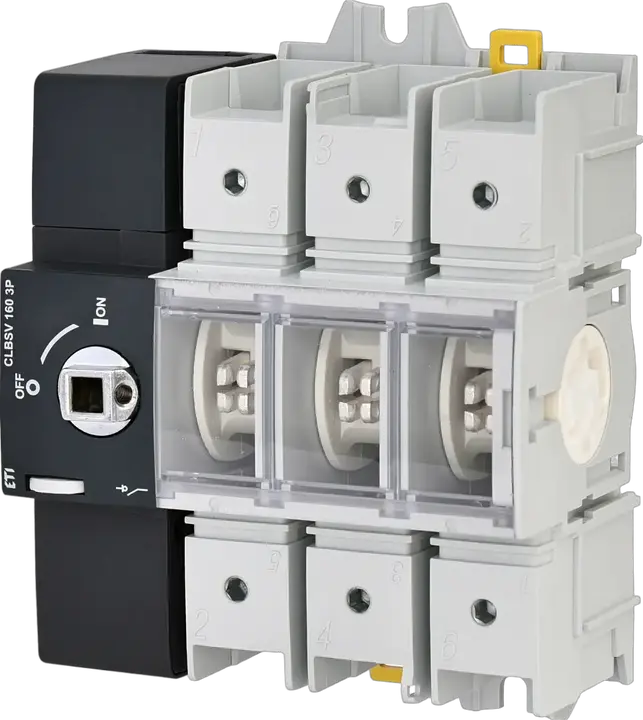

CLBSV 160 3P Rastavna sklopka
- ETI kod:
- 004661882
- Funkcija:
- 0-I
- Broj polova:
- 3
- Opis tipa:
- DIN šina montaža
- Nazivna struja:
- 160 A
- Grupa kataloga 1:
- Kompaktna teretna rastavna sklopka CLBSV
6 Dokumenti
21 Logistika
Proizvod
- Težina
- 0,82 kg
- Net width
- 109 mm
- Net height
- 142,9 mm
- Net depth
- 69,9 mm
- Stock unit of measure
- pcs
Osnovno pakiranje
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895824008
- Basic packaging weight
- 0,82 kg
- Basic Packaging Dimensions Height
- 165 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 184 mm
- Basic packaging volume
- 2,763 dm³
Transportno pakiranje
- Transport packaging quantity
- 28 pcs
- EAN code for a transport packaging
- 3838895824015
- Transport packaging weight
- 22,96 kg
- Transport Packaging Dimensions Height
- 170 mm
- Transport Packaging Dimensions Width
- 155 mm
- Transport Packaging Dimensions Depth
- 70 mm
- Transport packaging volume
- 1,844 dm³
- Pallet quantity
- 420 pcs
- Customs tariff
- 85365080
11 ETIM
- Version as maintenance-/service switch
- ✓
- Max. rated operation voltage Ue AC
- 800 V
- Suitable for floor mounting
- ✓
- Rated permanent current Iu
- 160 A
- Type of control element
- Door coupling rotary drive
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 75 kW
- Version as main switch
- ✓
ETIM klasifikacija – verzija 9.0
1 Softver i upravljački programi
Softver se pruža kakav jest, bez ikakvih jamstava ili garancija. Autor nije obvezan pružati podršku, servis, ispravke ili nadogradnje besplatnih softverskih programa ili upravljačkih programa.
18 Oznake
004661882Rastavna sklopkaCLBSV 160 3PETISWITCHCompact Load Break SwitchCLBSV - visible contactsCLBSV body(no handle included) 3 POLES, 0-1, 100 - 160 ACLBSV body(no handle included) 3 POLES, 0-1, 100 - 160 ACLBSV body(no handle included) 3 POLES, 0-1, 100 - 160 AMeđunarodniModularne i grebenaste sklopkeGrebenaste sklopke CLBSVOpis tipa: DIN šina montažaFunkcija: 0-IBroj polova: 3Nazivna struja: 160 A/160 AGrupa kataloga 1: Kompaktna teretna rastavna sklopka CLBSVRastavna sklopka Funkcija: 0-I Broj polova: 3 Opis tipa: DIN šina montaža Nazivna struja: 160 A/160 A Grupa kataloga 1: Kompaktna teretna rastavna sklopka CLBSV
