004661880

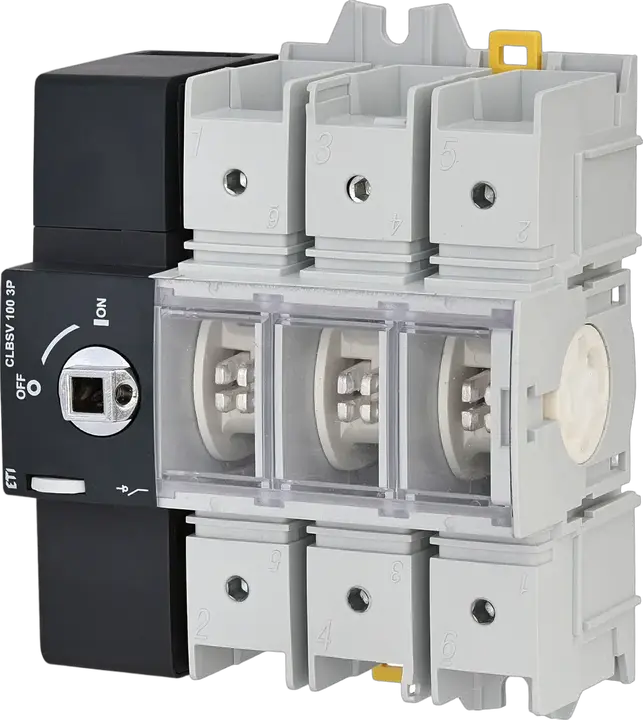

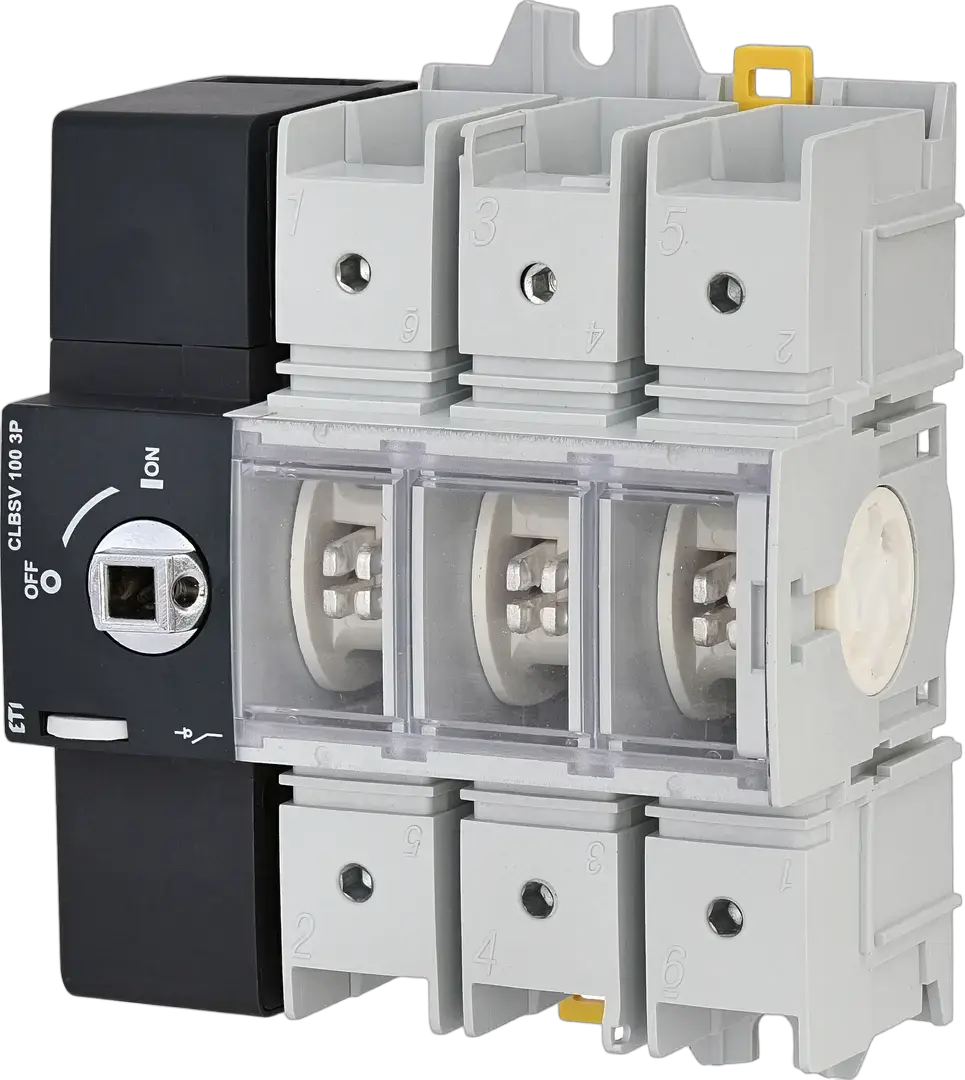

CLBSV 100 3P Rastavna sklopka
- ETI kod:
- 004661880
- Tip:
- DIN šina montaža
- Funkcija:
- 0-I
- Broj polova:
- 3
- Opis tipa:
- DIN šina montaža
- Nazivna struja:
- 100 A
- Grupa kataloga 1:
- Kompaktna teretna rastavna sklopka CLBSV
6 Dokumenti
21 Logistika
Proizvod
- Težina
- 0,837 kg
- Net width
- 109 mm
- Net height
- 142,9 mm
- Net depth
- 69,9 mm
- Stock unit of measure
- pcs
Osnovno pakiranje
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895823964
- Basic packaging weight
- 0,837 kg
- Basic Packaging Dimensions Height
- 165 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 184 mm
- Basic packaging volume
- 2,763 dm³
Transportno pakiranje
- Transport packaging quantity
- 28 pcs
- EAN code for a transport packaging
- 3838895823971
- Transport packaging weight
- 23,436 kg
- Transport Packaging Dimensions Height
- 400 mm
- Transport Packaging Dimensions Width
- 300 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 36 dm³
- Pallet quantity
- 420 pcs
- Customs tariff
- 85365080
11 ETIM
- Version as maintenance-/service switch
- ✓
- Max. rated operation voltage Ue AC
- 800 V
- Suitable for floor mounting
- ✓
- Rated permanent current Iu
- 100 A
- Type of control element
- Door coupling rotary drive
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 45 kW
- Version as main switch
- ✓
ETIM klasifikacija – verzija 9.0
