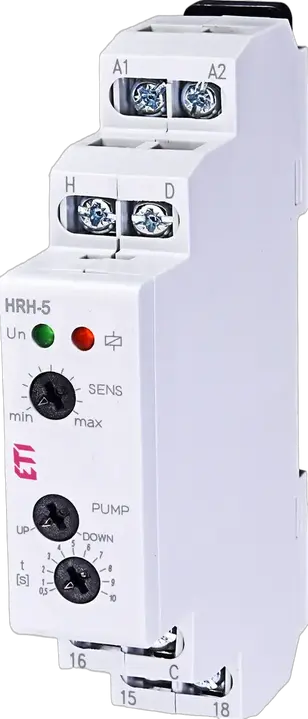

HRH-5 Nadzorni relej

ETI kod:: 002471715
Tip montaže:: Montaža na DIN šinu
Priključni presjek:: 0.5-2.5 mm²
Funkcija:: Uređaji za nadzor i upravljanje
Napon napajanja:: 24-240 V
Tip upravljanja:: Nadzorna razina
Broj kontakata:: 1
Tip napona:: AC/DC
Primjena:: Służy do monitorowania poziomu cieczy w zbiornikach, studniach i przepompowniach oraz do automatycznego sterowania pracą pomp
Maks. opterećenje AC1:: 2.000 VA
IP zaštita:: IP40, IP10
Nazivna struja:: 8 A
Tip kontakta:: 1xCO
Za upotrebu sa:: Współpracuje z sondami poziomu cieczy serii HRH (HRH-10, HRH-15, HRH-20, HRH-30, HRH-40)
Broj NC kontakata:: 1
Broj CO kontakata:: 1
Broj NO kontakta:: 1
DC napon napajanja Uc:: 24-240 V

Pribor

Proizvod

Težina: 0,072 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,26 mm
Stock unit of measure: pcs

Osnovno pakiranje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895489160
Basic packaging weight: 0,086 kg
Basic Packaging Dimensions Height: 25 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 70 mm
Basic packaging volume: 0,17 dm³

Transportno pakiranje

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3838895494782
Transport packaging weight: 0,688 kg
Transport packaging volume: 1,6 dm³
Pallet quantity: 8.000 pcs
Customs tariff: 85364900

Max. permitted operate delay time: 10 s
Width: 18 mm
Response value sensitivity adjustable: ✓
Physical measurement principle: Conductive
Voltage type (operating voltage): AC/DC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC/DC
Min. adjustable off-delay time: 0,5 s
Min. adjustable operate delay time: 0,5 s
Rated switch current: 8 A
Number of inputs for electrodes: 3
Depth: 65 mm
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 24 V
Operating voltage AC 60 Hz(Min): 24 V
Supply voltage AC 60 Hz(Min): 24 V
Supply voltage DC(Min): 24 V
Operating voltage DC(Min): 24 V
Supply voltage AC 50 Hz(Min): 24 V
Supply voltage AC 50 Hz(Max): 240 V
Operating voltage AC 60 Hz(Max): 230 V
Supply voltage DC(Max): 240 V
Operating voltage AC 50 Hz(Max): 230 V
Supply voltage AC 60 Hz(Max): 240 V
Operating voltage DC(Max): 230 V
