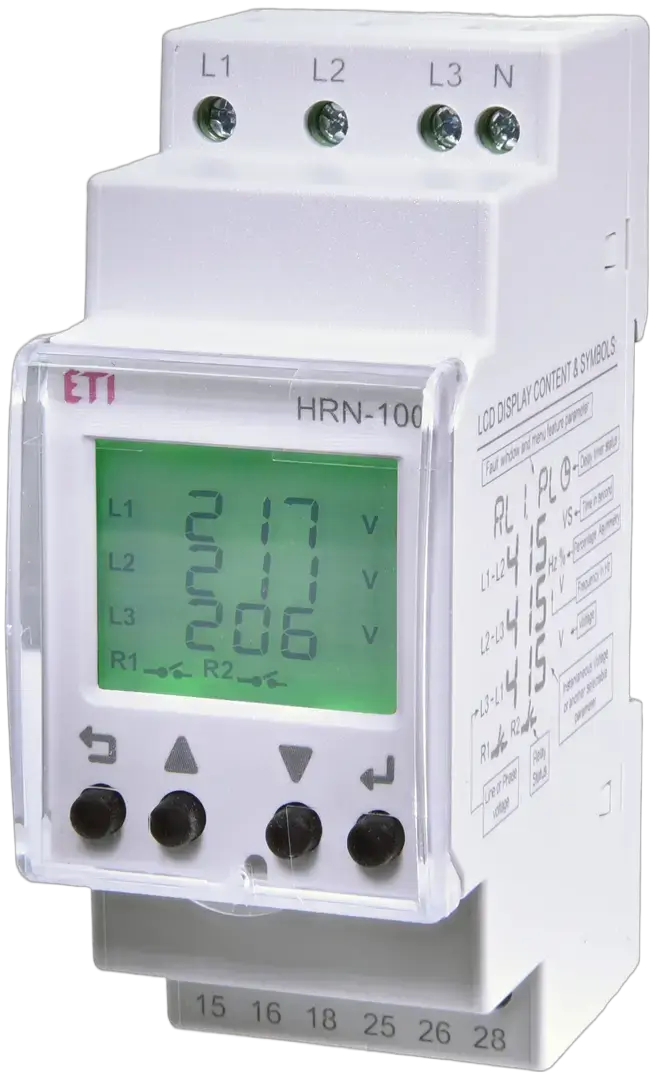

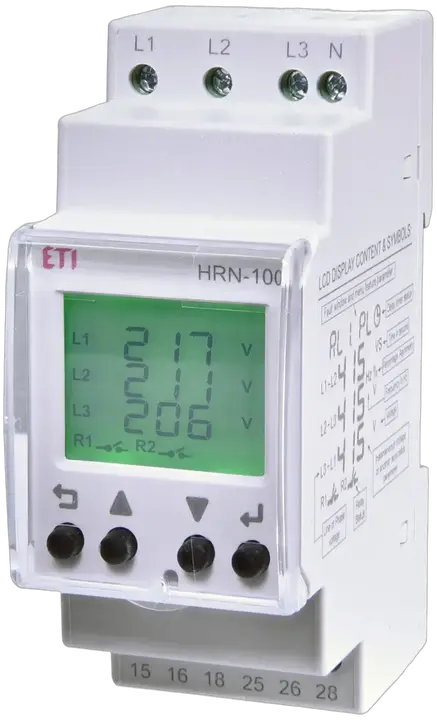

HRN-100/2 Nadzorni relej

ETI kod:: 002470303
Tip montaže:: Montaža na DIN šinu
Priključni presjek:: 0.5-2.5 mm²
Funkcija:: Uređaji za nadzor i upravljanje
Napon napajanja:: 155-400 V
Tip upravljanja:: Redoslijed faza, Greška faze i nule, Frekvencija
Broj kontakata:: 2
Tip napona:: AC
Primjena:: Umożliwia monitorowanie kolejności faz, zaniku fazy oraz asymetrii, w tym zaniku przewodu neutralnego, monitoruje górne i dolne wartości napięcia oraz częstotliwości w obwodach trójfazowych
Maks. opterećenje AC1:: 1.200 VA
IP zaštita:: IP40, IP20
Nazivna struja:: 5 A
Broj NC kontakata:: 2
Broj CO kontakata:: 2
Broj NO kontakta:: 2

Proizvod

Težina: 0,132 kg
Net width: 36 mm
Net height: 92,5 mm
Net depth: 66,31 mm
Stock unit of measure: pcs

Transportno pakiranje

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895981015
Transport packaging weight: 0,132 kg
Transport Packaging Dimensions Height: 61 mm
Transport Packaging Dimensions Width: 97 mm
Transport Packaging Dimensions Depth: 78 mm
Transport packaging volume: 0,462 dm³
Pallet quantity: 1.920 pcs
Customs tariff: 85364900

Single-phase under voltage possible: ✓
Width: 36 mm
Three-phase under voltage possible: ✓
Single-phase hysteresis possible: ✓
Max. permitted delay-on energization time: 999 s
Min. adjustable delay-on energization time: 0,1 s
Max. permitted off-delay time: 999 s
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Three-phase over voltage possible: ✓
Type of voltage measuring range: AC
Rated switch current: 5 A
Single-phase over voltage possible: ✓
Depth: 66,5 mm
Three-phase hysteresis possible: ✓
Type of electric connection: Screw connection
Number of contacts as change-over contact: 2
Height: 90 mm
Response value voltage(Min): 90 V
Voltage measuring range 2(Min): 150 V
Voltage measuring range 1(Min): 85 V
Voltage measuring range 1(Max): 310 V
Response value voltage(Max): 500 V
Voltage measuring range 2(Max): 535 V

ETIM klasifikacija – verzija 9.0
