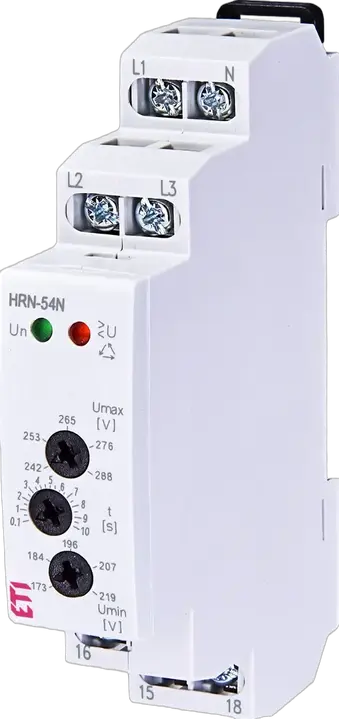

HRN-54N Nadzorni relej

ETI kod:: 002471412
Tip montaže:: Montaža na DIN šinu
Priključni presjek:: 0.5-2.5 mm²
Funkcija:: Uređaji za nadzor i upravljanje
Napon napajanja:: 400 V
Tip upravljanja:: Redoslijed faza, Greška faze i nule
Broj kontakata:: 1
Tip napona:: AC
Primjena:: Służy do kontroli kolejności faz, zaniku faz oraz zaniku przewodu neutralnego w sieciach trójfazowych 3×400 V, chroniąc urządzenia przed pracą przy nieprawidłowym zasilaniu.
Maks. opterećenje AC1:: 2.000 VA
IP zaštita:: IP40, IP10
Nazivna struja:: 8 A
Tip kontakta:: 1xCO
Broj NC kontakata:: 1
Broj CO kontakata:: 1
Broj NO kontakta:: 1

Pribor

Proizvod

Težina: 0,07 kg
Net width: 17,5 mm
Net height: 91,3 mm
Net depth: 64,26 mm
Stock unit of measure: pcs

Osnovno pakiranje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895423935
Basic packaging weight: 0,074 kg
Basic Packaging Dimensions Height: 70 mm
Basic Packaging Dimensions Width: 97 mm
Basic Packaging Dimensions Depth: 25 mm
Basic packaging volume: 0,17 dm³

Transportno pakiranje

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895423942
Transport packaging weight: 0,74 kg
Transport Packaging Dimensions Height: 102 mm
Transport Packaging Dimensions Width: 284 mm
Transport Packaging Dimensions Depth: 75 mm
Transport packaging volume: 2,173 dm³
Pallet quantity: 4.600 pcs
Customs tariff: 85364900

Single-phase under voltage possible: ✓
Phase failure detection: ✓
Width: 18 mm
Three-phase under voltage possible: ✓
Single-phase hysteresis possible: ✓
Max. permitted delay-on energization time: 10 s
Min. adjustable delay-on energization time: 0,1 s
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Phase sequence monitoring: ✓
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,1 s
Function under voltage detection: ✓
Three-phase over voltage possible: ✓
Type of voltage measuring range: AC
Phase imbalance monitoring: ✓
Rated switch current: 8 A
Single-phase over voltage possible: ✓
Function over voltage detection: ✓
Depth: 64 mm
Three-phase hysteresis possible: ✓
Type of electric connection: Screw connection
Number of contacts as change-over contact: 1
Height: 90 mm
Operating voltage AC 50 Hz(Min): 230 V
Voltage measuring range(Min): 300 V
Operating voltage AC 60 Hz(Min): 230 V
Supply voltage AC 60 Hz(Min): 230 V
Voltage measuring range 2(Min): 173 V
Voltage measuring range 1(Min): 242 V
Supply voltage AC 50 Hz(Min): 230 V
Voltage measuring range 1(Max): 288 V
Supply voltage AC 50 Hz(Max): 400 V
Voltage measuring range(Max): 500 V
Operating voltage AC 60 Hz(Max): 230 V
Operating voltage AC 50 Hz(Max): 230 V
Voltage measuring range 2(Max): 219 V
Supply voltage AC 60 Hz(Max): 400 V

ETIM klasifikacija – verzija 9.0
