002440729

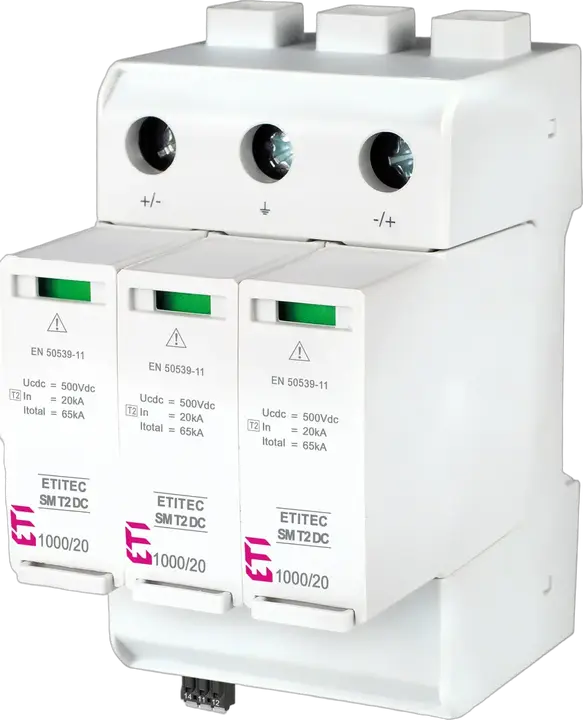

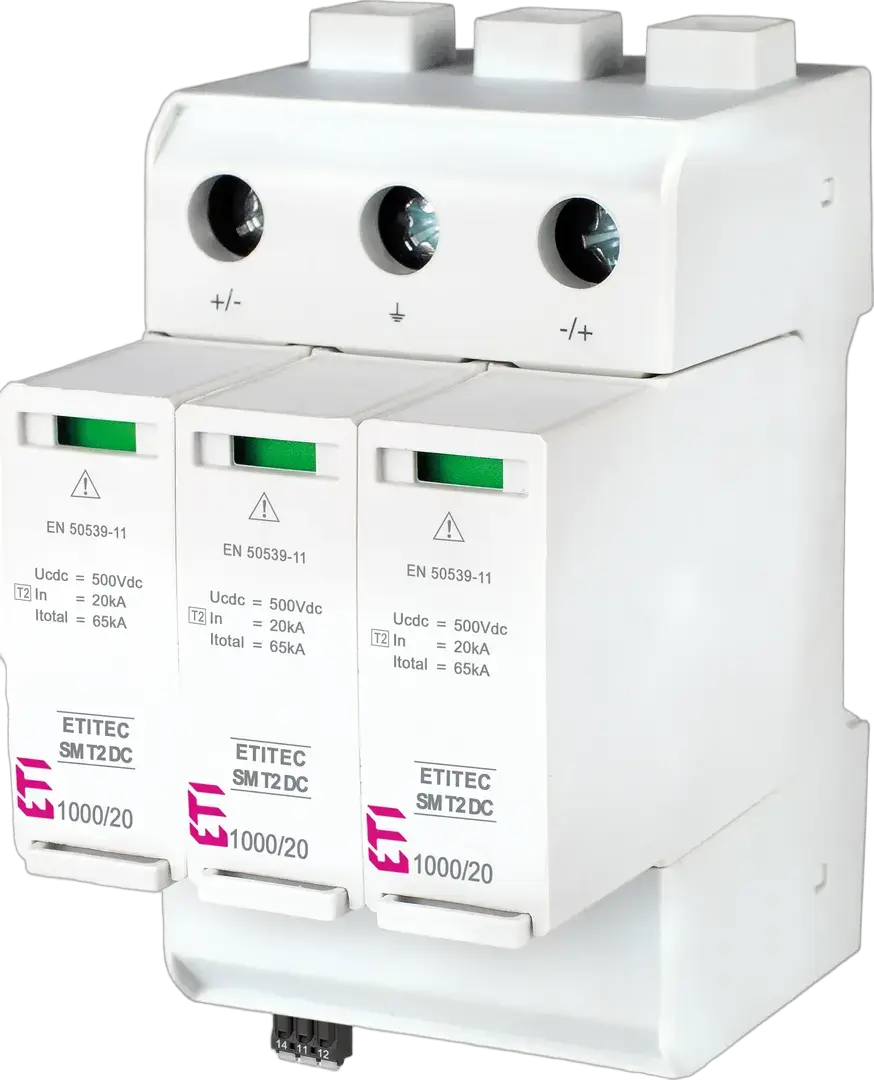

ETITEC SM T2 DC 1000/20 Y RC Odvodnik prenapona
- ETI kod:
- 002440729
- Funkcija:
- SPD
- Tip struje:
- DC
- Grupa kataloga 1:
- ETITEC SM DC
- Instalacija:
- Zaštita kuće i stanova
- Daljinska signalizacija:
- ✓
- IP zaštita:
- IP20
- Broj modula:
- 3
- Up - Zaštitna naponska razina:
- 4,8 kV
- Struja curenja:
- ✗
- Primjenjena tehnologija:
- MOV, GDT
- Dubina ugradnje:
- 70 mm
- In (8/20):
- 20 kA
- Priključci za vodič:
- 35 mm²
- Maks. trajni radni napon DC Uc:
- 1.000 V
- Tip prenaponskog odvodnika:
- T2
2 Dokumenti
18 Logistika
Proizvod
- Težina
- 0,395 kg
- Stock unit of measure
- pcs
Osnovno pakiranje
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966159
- Basic packaging weight
- 0,425 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 62 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0,512 dm³
Transportno pakiranje
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895966166
- Transport packaging weight
- 2,206 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4,412 dm³
- Pallet quantity
- 1.130 pcs
- Customs tariff
- 85363090
18 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. discharge surge current (8/20)
- 65 kA
- Number of conductors (without earthing)
- 2
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1.000 V
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Nominal voltage DC
- 900 V
- Short-circuit breaking capacity (Isccr)
- 30 kA
- Voltage protection level
- 4,8 kV
- Signalling at the device
- Optical
- Category type 2
- ✓
- Voltage protection level N-PE
- 2,5 kV
- Max. continuous voltage AC
- 100 V
- With remote signalling contact
- ✓
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- ✓
ETIM klasifikacija – verzija 9.0
