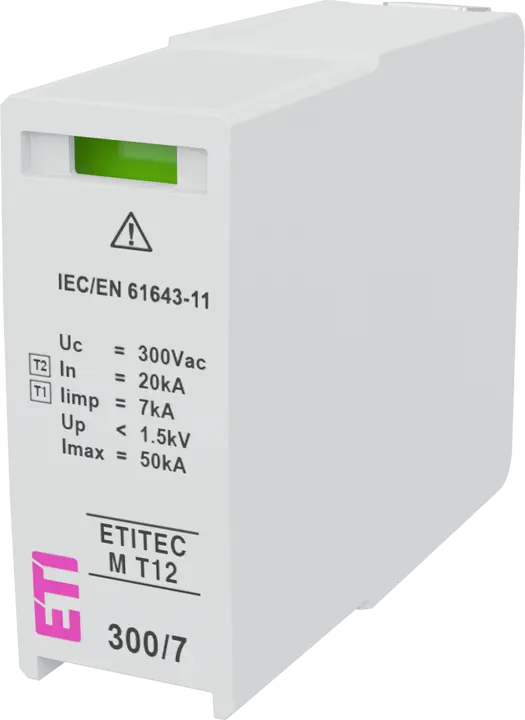

MOD.ETITEC M T12 300/7 Odvodnik prenapona

ETI kod:: 002440508
Funkcija:: SPD Modul
Za upotrebu sa:: ETITEC M T12
Tip struje:: AC
Maksimalna odvodna struja (10/350) Iimp:: 7 kA
In (8/20):: 20 kA

2D datoteka

Proizvod

Težina: 0,107 kg
Stock unit of measure: pcs

Osnovno pakiranje

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895839316
Basic packaging weight: 0,118 kg
Basic Packaging Dimensions Height: 50 mm
Basic Packaging Dimensions Width: 24 mm
Basic Packaging Dimensions Depth: 72 mm
Basic packaging volume: 0,086 dm³

Transportno pakiranje

Transport packaging quantity: 28 pcs
EAN code for a transport packaging: 3838895839323
Transport packaging weight: 3,625 kg
Transport Packaging Dimensions Height: 115 mm
Transport Packaging Dimensions Width: 109 mm
Transport Packaging Dimensions Depth: 352 mm
Transport packaging volume: 4,412 dm³
Pallet quantity: 4.620 pcs
Customs tariff: 85363090

System configuration TN-C: ✓
Nominal voltage AC: 230 V
Test class: Type 1 + 2
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Lightning impulse current (10/350 µs): 7 kA
Specific energy (W/R): 12,25 kJ/Ohm
System configuration TN-S: ✓
Voltage protection level: 1,5 kV
System configuration TN: ✓
Number of poles: 1
System configuration TT: ✓
Signalling at the device: Optical
Max. continuous voltage AC: 300 V

ETIM klasifikacija – verzija 9.0
